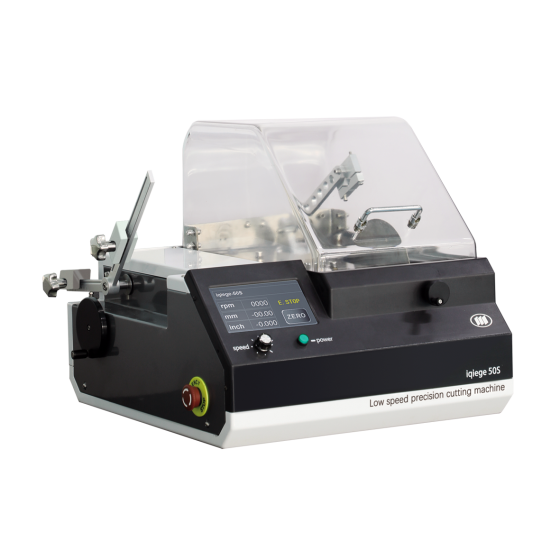

The iqiege® 50S low-speed precision cutting machine employs advanced brushless DC motor control technology, featuring a compact design, reliable operation, and strong anti-interference capability. It is suitable for the precise cutting of various materials, particularly high-value, brittle synthetic crystals. The equipment is equipped with one standard single-clamp fixture and five specialized fixtures, enabling optimal angular positioning and alignment of workpieces for cutting. A limit switch is included to facilitate unattended operation. The spindle boasts high rotational accuracy, a wide speed-adjustment range, and fine adjustment of the horizontal feed rate, with automatic shutdown upon completion of the cut. An optional platform attachment is also available for push-cutting operations.
Product Introduction
I. Overview:

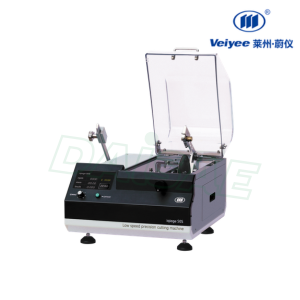

The iqiege® 50S low-speed precision cutting machine employs advanced brushless DC motor control technology, featuring a compact structure, reliable operation, and strong anti-interference capability. It is suitable for the precise cutting of various materials, particularly high-value, brittle synthetic crystals. The equipment is equipped with one standard single-clamp fixture and five specialized fixtures, enabling optimal angular positioning and alignment of workpieces for cutting; it also includes limit switches to facilitate unattended operation. The spindle boasts high rotational accuracy, a wide speed-regulation range, and fine adjustment of the horizontal feed rate, with automatic shutdown upon completion of the cut. An optional platform attachment is available for push-type cutting.
II. Main Technical Parameters:
|
Maximum Cutting Capacity
|
∮50mm
|
|
Spindle speed
|
150–2,000 rpm (stepless speed regulation)
|
|
Rated torque
|
5.8 N·m
|
|
Spindle cutting power
|
0.12 kW
|
|
X-axis traverse accuracy
|
0.01 mm
|
|
X-axis traverse travel
|
40mm
|
|
Cutting disc
|
Outer diameter: 127–177 mm (maximum diameter: 200 mm) Inner diameter 12.7 or 25.4 mm Saw blade collet diameter: 50 mm |
|
Cutting pressure
|
Lever load: 0–700 g
|
|
Cutting method
|
Cutting-by-impact method, with automatic stop protection upon cut completion.
|
|
Water tank capacity
|
1 liter
|
|
Power supply
|
220V (110V available upon request)
|
| Dimensions |
595×630×535mm
|
|
Net weight
|
45 kg
|
|
Optional Accessories
|
Cutting platform
|
III. Fixture Schematic Diagram:
