Product Introduction
1. Overview

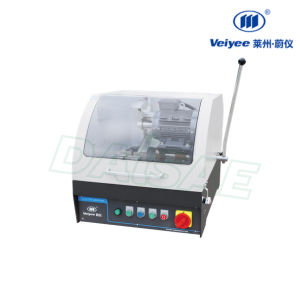

The IQIEGE 180D is a basic metallographic sample-preparation machine designed for cutting specimens of various metallic and non-metallic materials. It is primarily used to prepare samples that meet the requirements for metallographic and petrographic microstructural observation. Equipped with a dedicated coolant system and an active cooling protection mechanism, it effectively dissipates heat during cutting, preventing overheating and thermal damage to the specimen and ensuring the integrity of the microstructure. The machine features a robust construction, stable performance, simple operation, and high safety and reliability. It is powered by a 3.0 kW motor and capable of cutting up to 80 mm in diameter. With manual control and clear maintenance guidelines, combined with its powerful drive and practical cutting capability, it can satisfy the routine material-sampling needs of most laboratories, making it a cost-effective metallographic sample-preparation solution for use in industrial plants, research institutions, and university laboratories.
2. Main Technical Specifications
|
Power supply |
380V, 50Hz |
|
Spindle speed (r/min) |
2800 |
|
Cutting disc specifications (mm) |
250×2×32 |
|
Maximum Cutting Capacity (mm) |
φ80 |
|
Electric motor power (kW) |
3.0 |
|
External dimensions (mm) |
690×790×670
|
