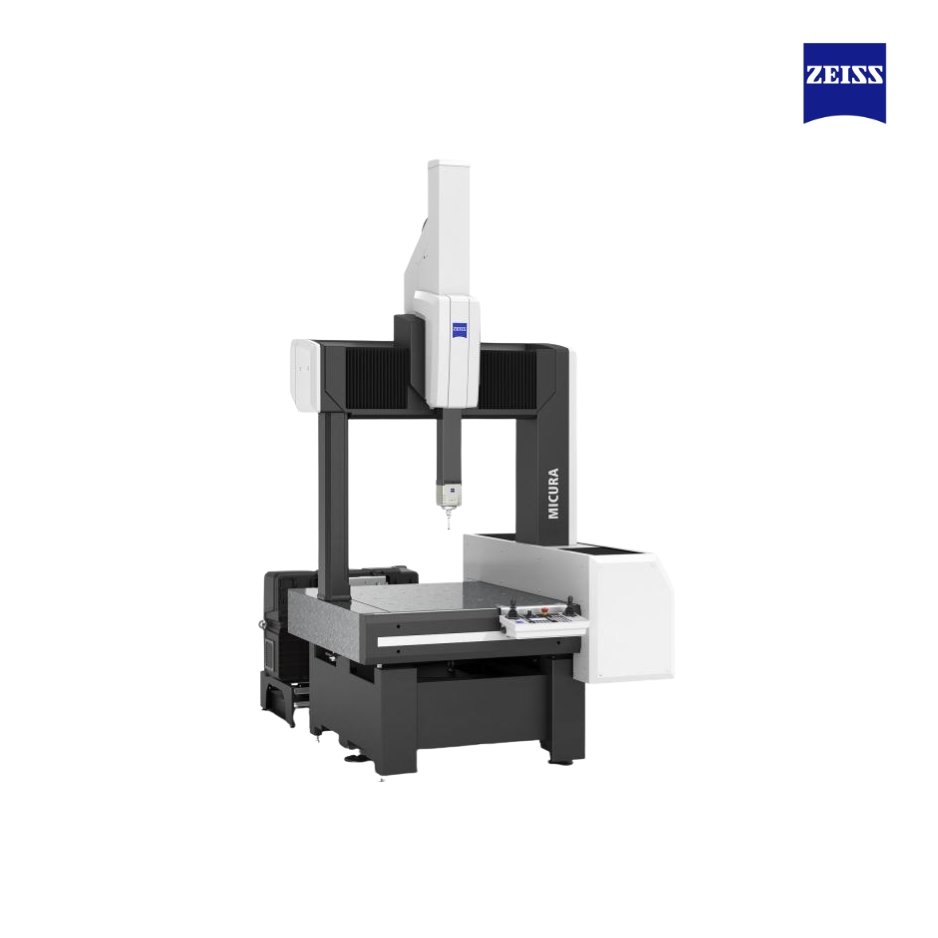

ZEISS MICURA

ZEISS MICURA

Maximum precision for small components

ZEISS MICURA defines the standard in precision for compact workpieces and combines advanced technologies such as the ZEISS VAST XT gold active scanning probe, ZEISS VAST XTR gold, navigator technology, and new innovative CMM corrections for unmatched accuracy in its class.

  • Highly precise with an accuracy of <1µm
  • Active scanning and navigator technology
  • High stability due to air bearing
  • Optional rotary table for more flexibility with 4-axis scanning

Compact and highly precise

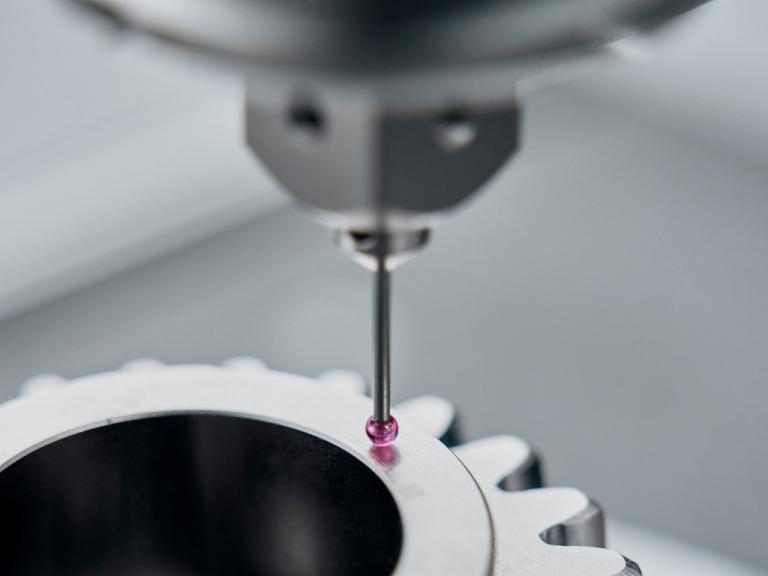

Precise high-speed scanning

The VAST XT gold and VAST XTR gold probes from ZEISS enable high-speed scanning with up to 500 measuring points per second. In addition to geometric parameters, shape and position parameters such as roundness or flatness can also be precisely measured in a short space of time. The VAST XT gold probe can be equipped with particularly small test spheres. The smallest probe has a diameter of just 0.3 mm.

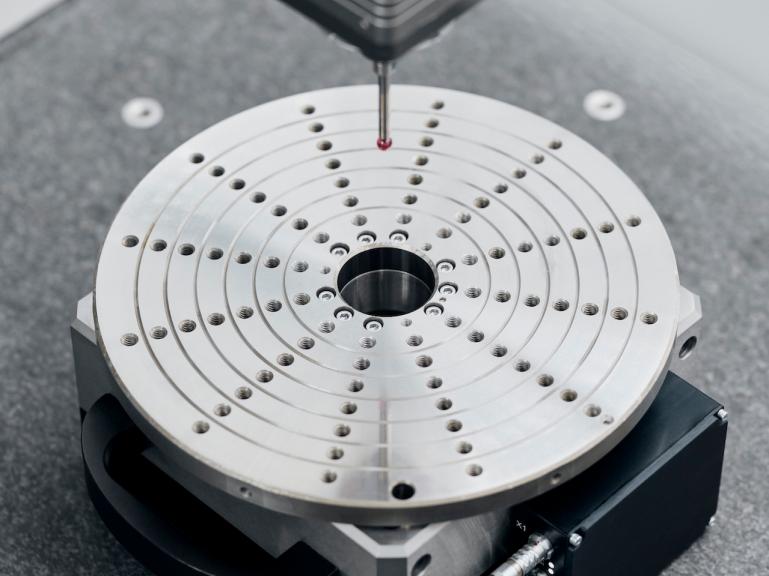

More flexibility with ZEISS rotary table

The flexible ZEISS RT-RB-100-1 rotary table can be installed in the measuring area as a setup variant as required and then conveniently moved out of the measuring area again. This option enables measurement in four axes – on just one machine.



The reference for the reference
