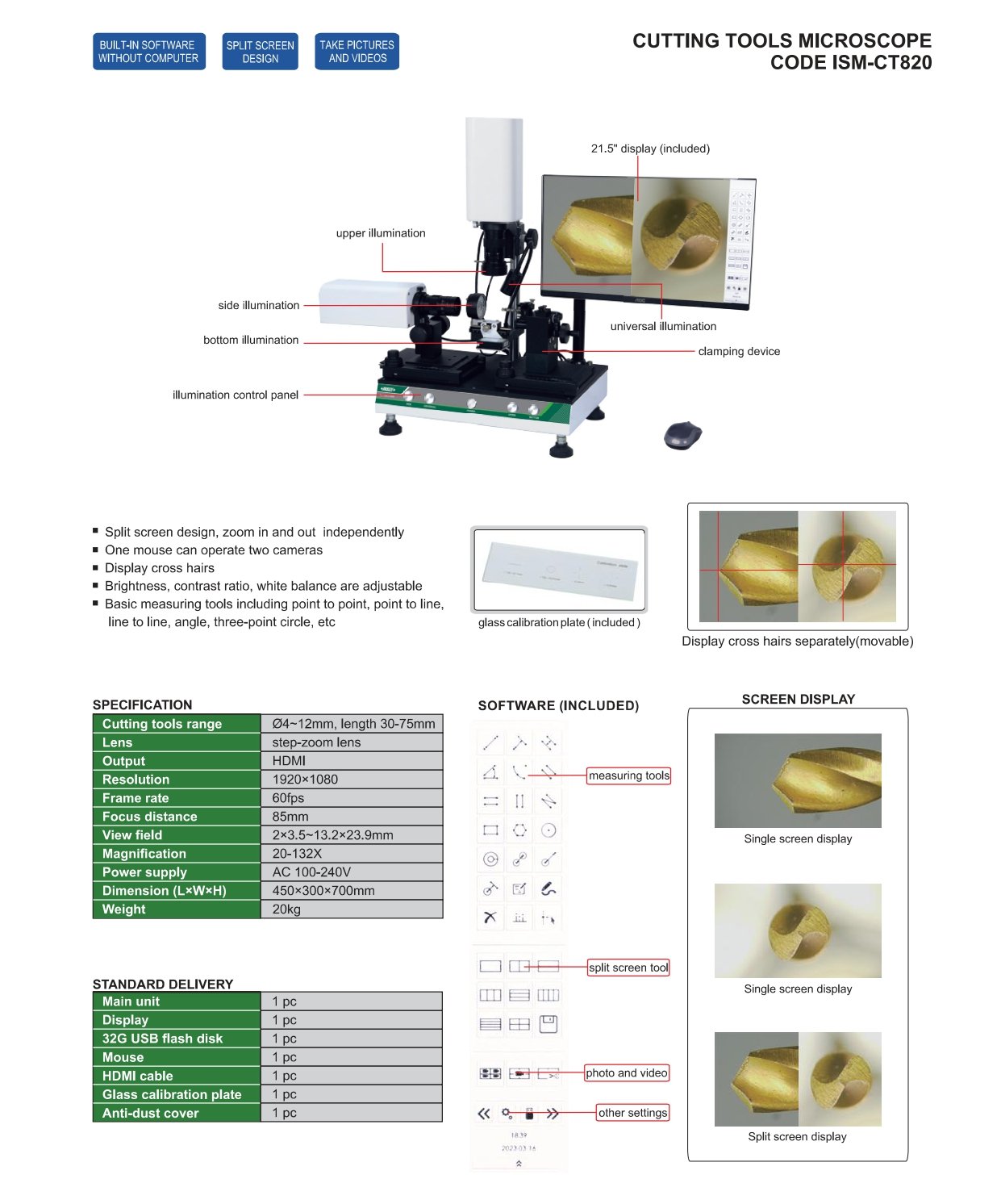

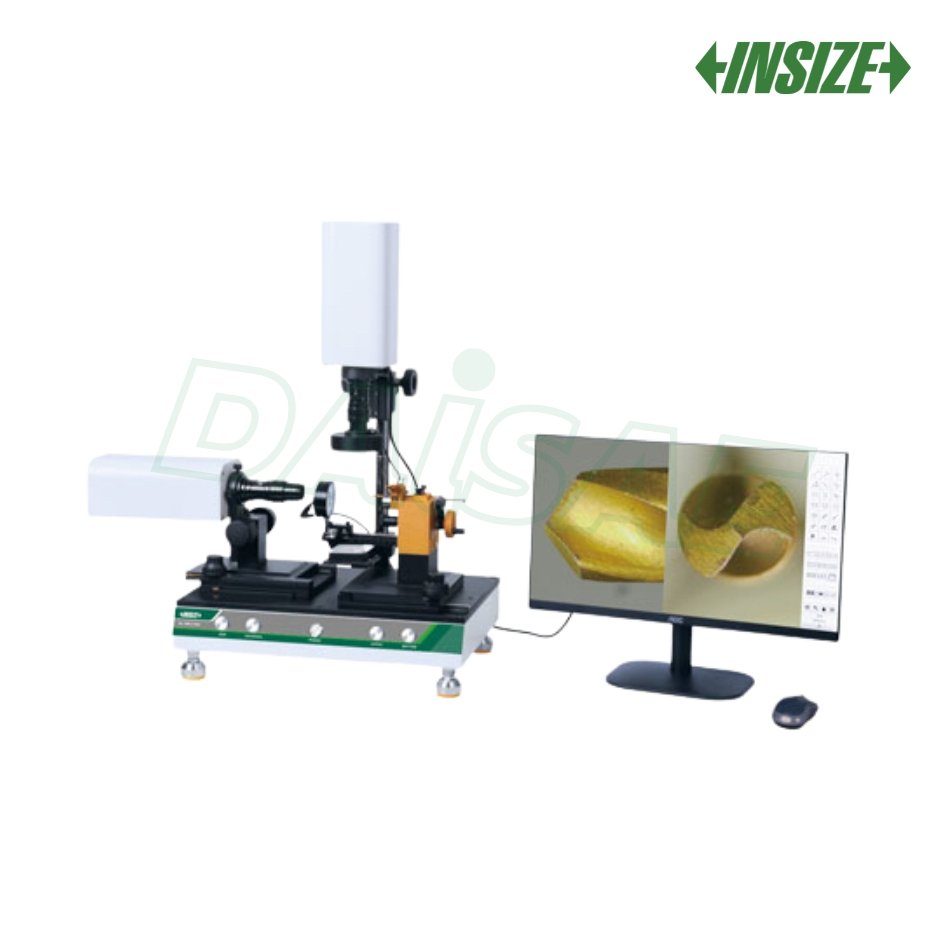

INSIZE ISM-CT820 Cutting Tool (Ø3~10mm, length 30-75mm)
- Split screen design, Zoom in and out independently
- One mouse can operate two cameras
- Display cross hairs
- Brightness, Contrast ratio, White balance are adjustable
- Basic measuring tools including point to point, point to line, Line to line, Angle, Three-point circle, etc.
Specification
Tools range: Ø3~10mm, length 30-75mm
Lens: step-zoom lens
Output: HDMI
Resolution: 1920×1080
Frame rate: 60fps
Focus distance: 85mm
View field: 0.9×1.5-5.5×10mm
Magnification: 45-290X
Power supply: AC 100-240V
Dimension (L×W×H): 450×300×700mm
Weight: 20kg
อุปกรณ์
Main unit : 1 pc
display: 1 pc
32G USB flash drive: 1 pc
Mouse: 1 pc
HDMI cable: 1 pc
Glass calibration plate: 1 pc
Anti-dust cover: 1 pc
