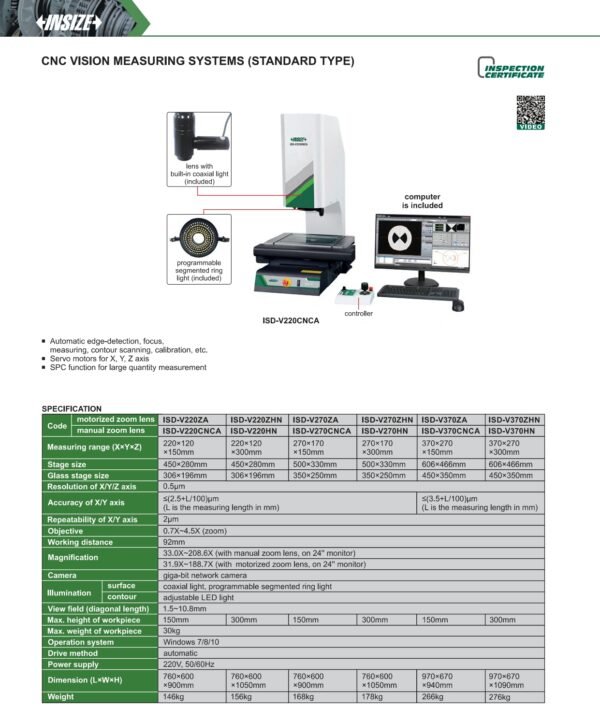

Code of manual zoom lens: ISD-V220CNCA

Measuring range (XxYxZ): 220×120x150mm

Stage size: 450x280mm

Glass stage size: 306×196mm

Resolution of X/Y/Z axis: 0.5μm

Accuracy of X/Y axis: ≤(2.5+L/100)μm (L is the measuring length in mm)

Repeatability of X/Y axis: 2μm

Objective: 0.7X-4.5X (zoom)

Working distance: 92mm

Magnification

33.0X-208.6X (with manual zoom lens, on 24″ monitor)

31.9X-188.7X (with motorized zoom lens, on 24″ monitor)

Camera: giga-bit network camera

Illumination

surface: coaxial light, programmable segmented ring light

contour: adjustable LED light

View field (diagonal length): 1.5-10.8mm

Max. height of workpiece: 150mm

Max. weight of workpiece: 30kg

Operation system: Windows 7/8/10

Drive method: automatic

Power supply: 220V, 50/60Hz

Dimension (L*W*H): 760×600x900mm

Weight: 146kg

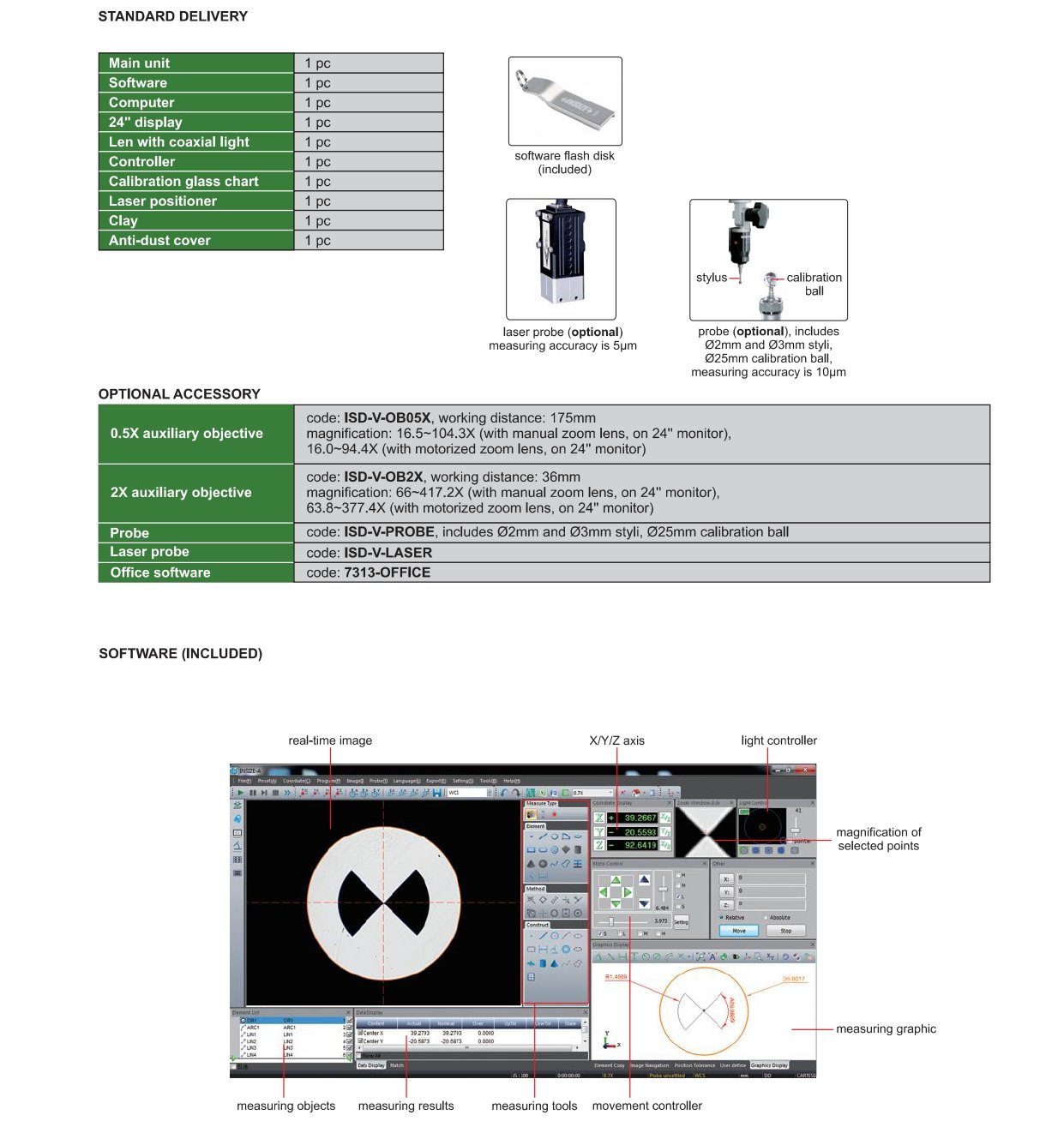

อุปกรณ์
Main unit : 1 pc
Software: 1 pc
Computer: 1 pc
24″ display: 1 pc
Len with coaxial light: 1 pc
Controller: 1 pc
Calibration Glass Chart:1 pc
Laser Positioner: 1 pc
Clay: 1 pc
Anti-dust cover: 1 pc
