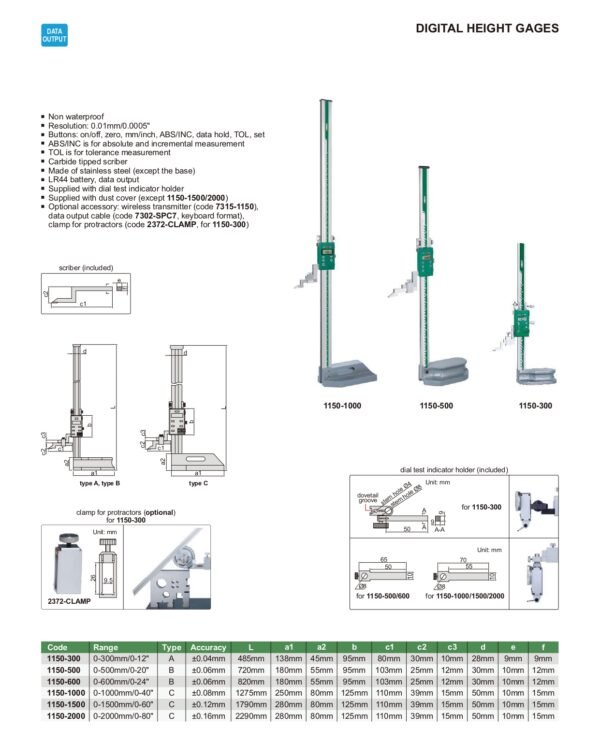

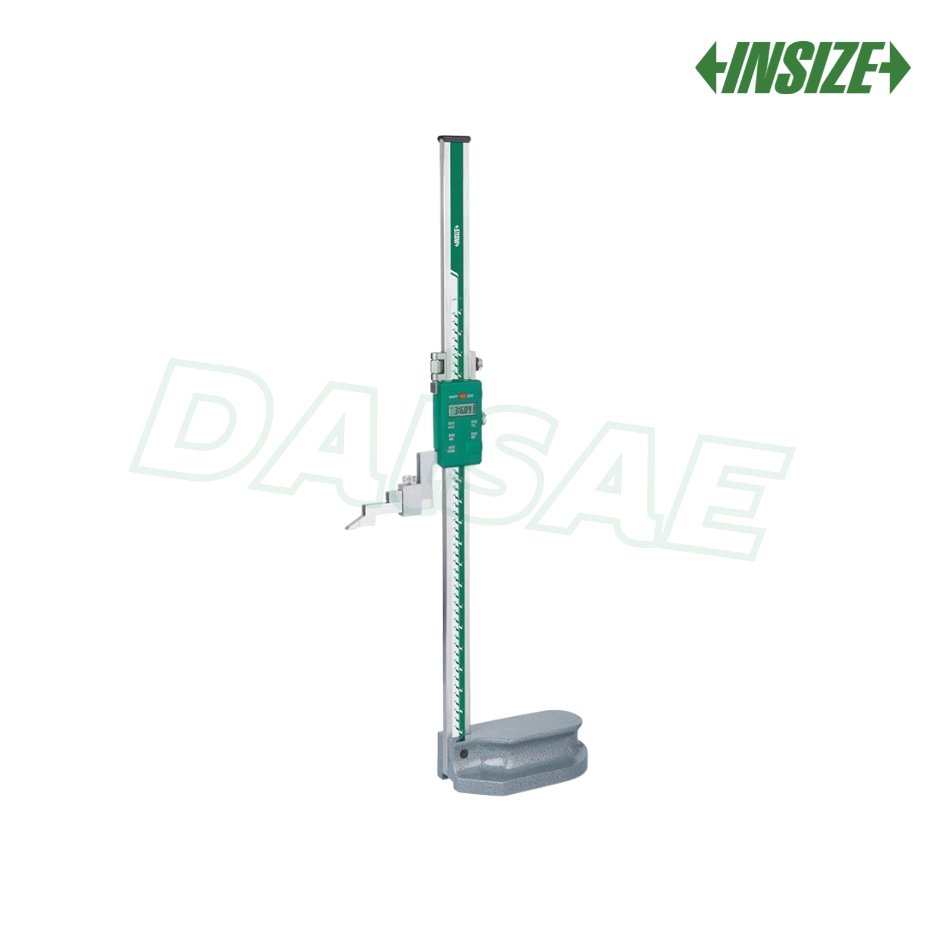

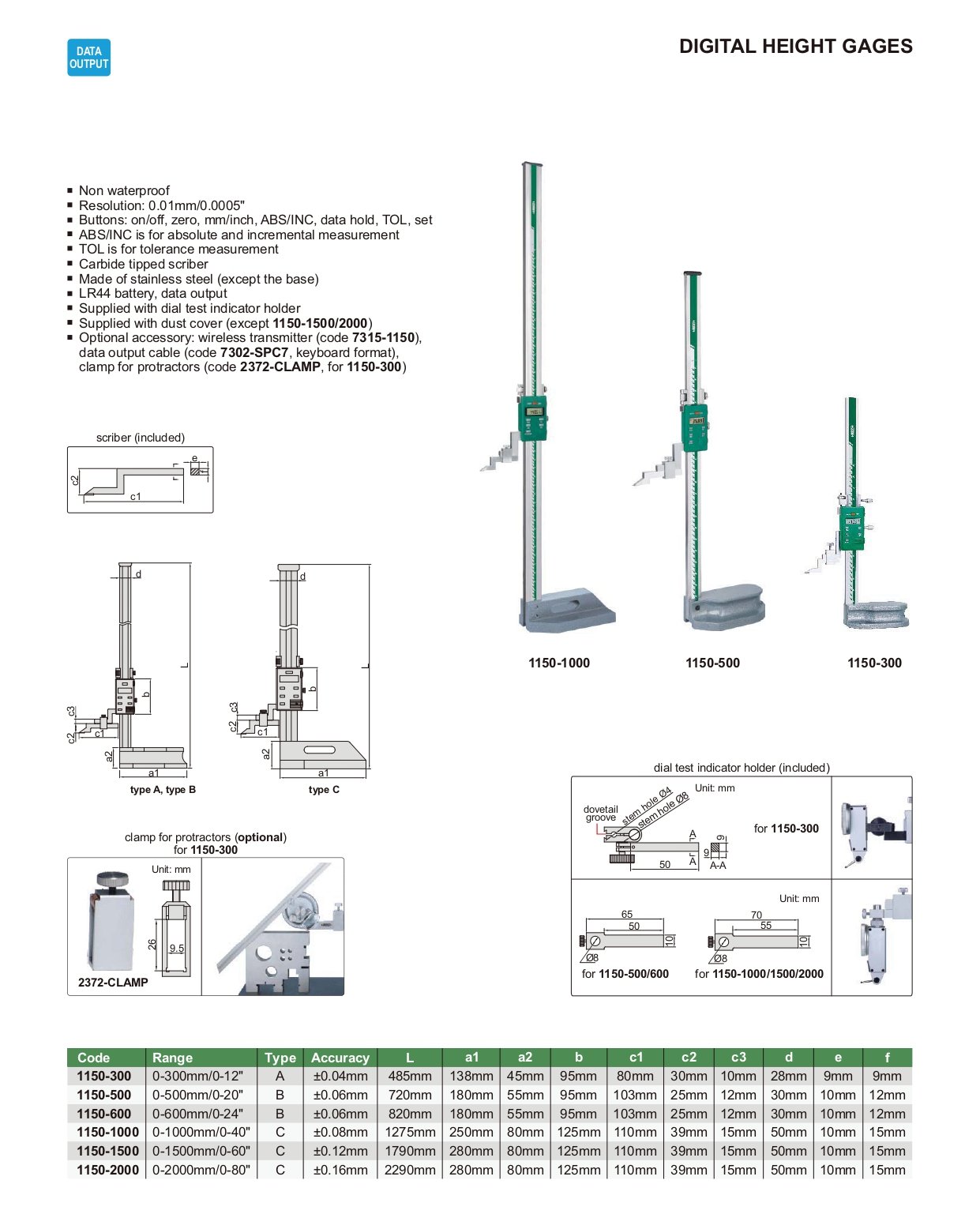

The INSIZE 1150-300 Digital Height Gage has the following specifications:
- Range: 0-12″/0-300mm
- Accuracy: +/-0.04mm
- Resolution: 0.01mm/0.0005″
- L: 485mm
- a1: 138mm
- a2: 45mm
- b: 95mm
- c1: 80mm
- C2: 30mm
- C3: 10mm
- d: 28mm
Features:
- Buttons: on/off, zero, mm/inch, ABS/INC, data hold, TOL, set
- ABS/INC is for absolute and incremental measurement
- TOL is for tolerance measurement
- Carbide tipped scriber
- Made of stainless steel (except the base)
- LR44 battery, data output
- Supplied with dial test indicator holder
- Supplied with dust cover (except 1150-1500/2000)
- Optional accessory: wireless transmitter (code 7315-1150), data output cable (code 7302-SPC7, keyboard format), clamp for protractors (code 2372-CLAMP, for 1150-300)
