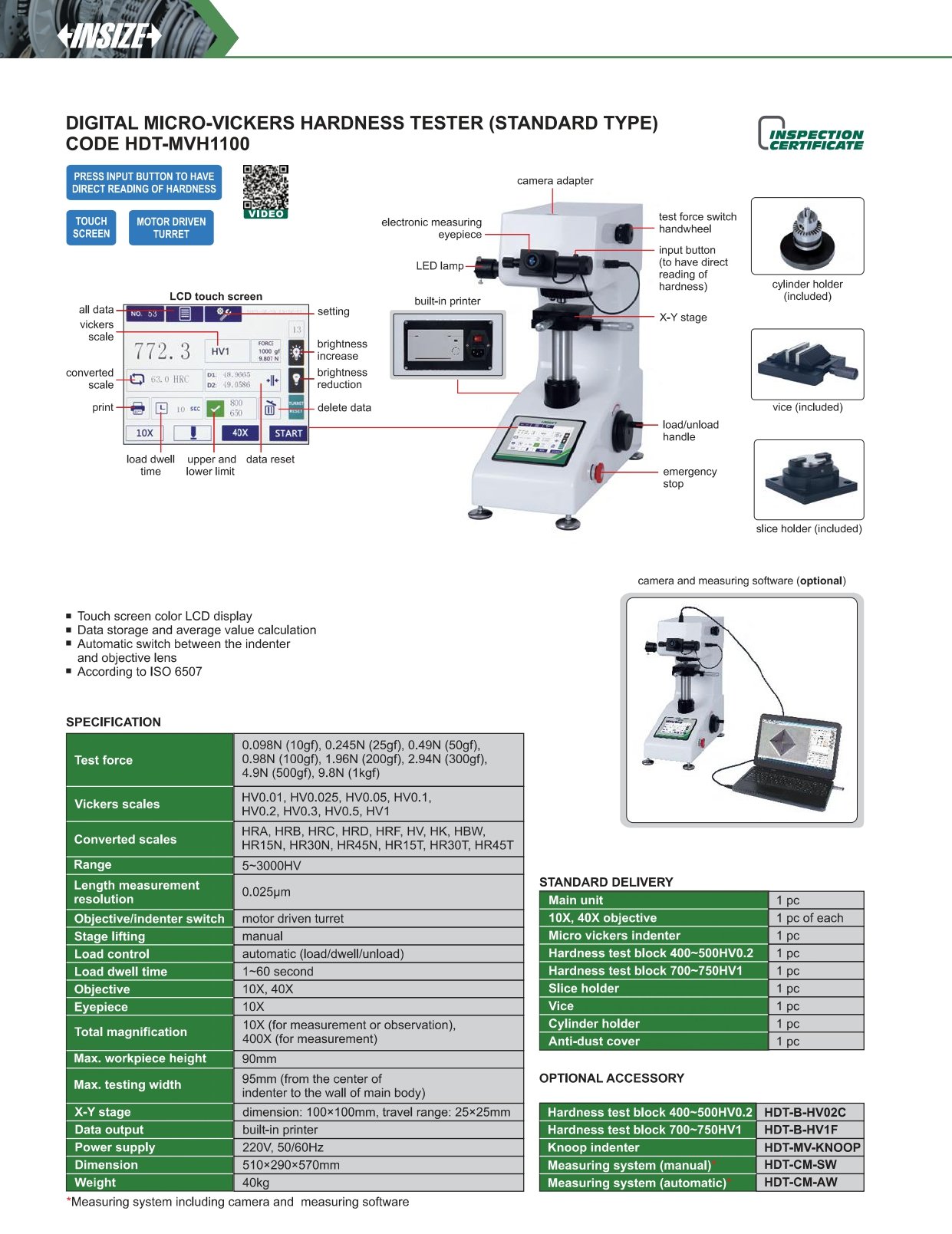

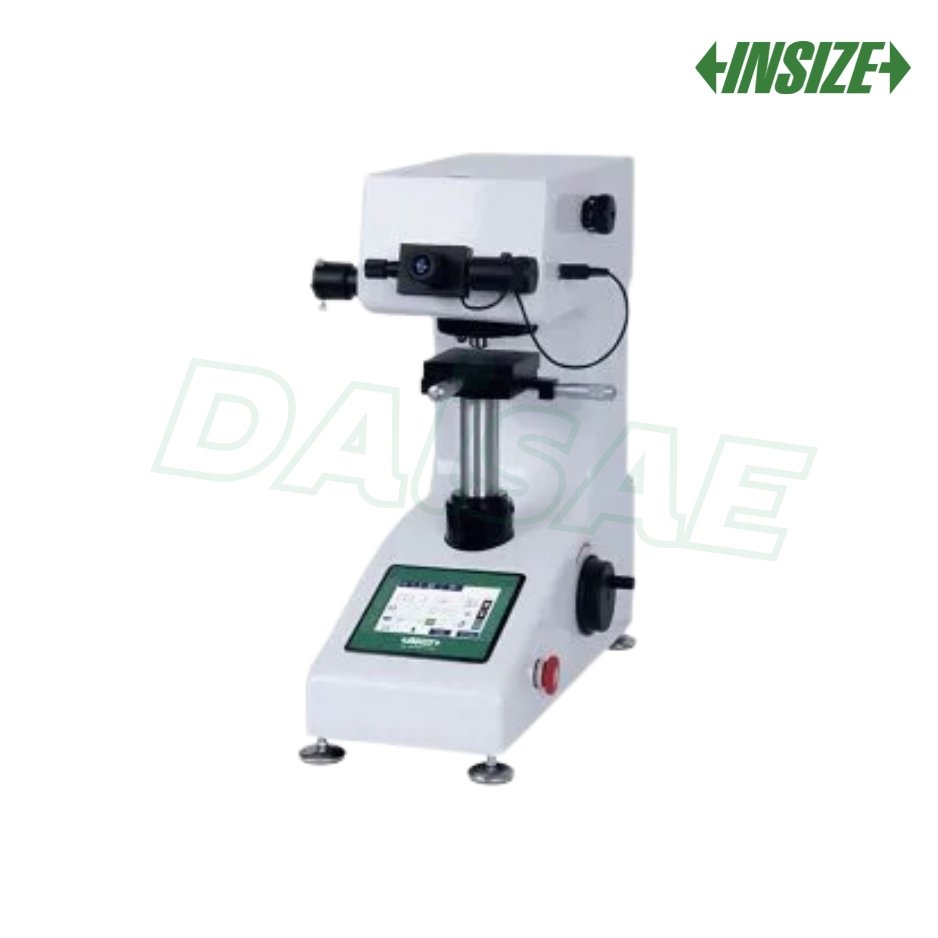

INSIZE HDT-MVH1100 Digital Micro-Vickers Hardness Tester
(5-3000HV)
- Touch screen color LCD display
- Data storge and average value calculation
- Automatic switch between the indenter and objective lens
- According to ISO 6507
Specification
Test force: 0.098N (10gf), 0.245N (25gf), 0.49N (50gf), 0.98N (100gf), 1.96N (200gf), 2.94N (300gf), 4.9N (500gf), 9.8N (1kgf)
Vickers scales: HV0.01, HV0.025, HV0.05, HVO.1, HVO.2, HV0.3, HV0.5, HV1
Converted scales: HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Range: 5-3000HV
Length measurement resolution: 0.025μm
Objective/indenter switch: motor driven turret
Stage lifting: manual
Load control: automatic (load/dwell/unload)
Load dwell time: 1-60 second
Objective: 10X, 40X
Eyepiece: 10X
Total magnification: 10X (for measurement or observation); 400X (for measurement)
Max. workpiece height: 90mm
Max. testing width: 95mm (form the center of indenter to the wall of main body)
X-Y stage: dimensions: 100x100mm, travel range: 25×25mm
Data output: built-in printer220V, 50/60Hz
Power supply: 220V, 50/60Hz
Dimension: 510×290×570mm
Weight: 40kg
อุปกรณ์หลัก
Main unit : 1 pc
Micro vickers indenter: 1 pc
10X, 40X objective: 1 pc of each
Hardness test block 400-500 HV0.2: 1 pc
Hardness test block 700-750 HV1: 1 pc
Slide holder: 1 pc
Vice: 1 pc
Cylinder holder: 1 pc
Anti-dust cover: 1 pc
