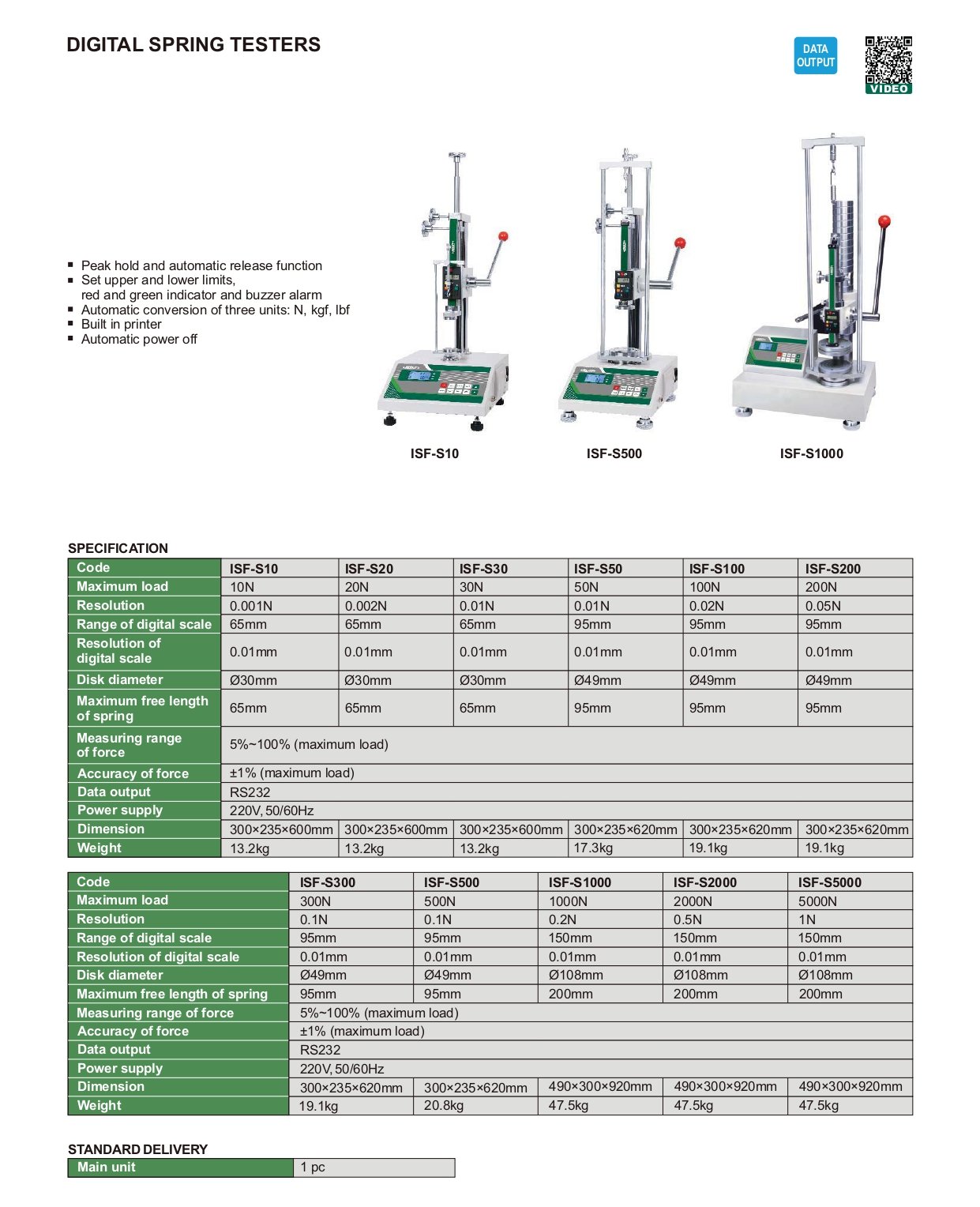

INSIZE ISF-S10 Digital Spring Tester (10N; 0.001N)
- Peak hold and automatic release function
- Set upper and lower limits, Red and green indicator and buzzer alarm
- Automatic conversion of three units: N, Kgf, Ibf
- Built in printer
- Automatic power off
Specification
Maximum load: 10N
Resolution: 0.001N
Range of digital scale: 65mm
Resolution of digital scale: 0.01mm
Disk diameter: Ø30mm
Maximum free length of spring: 65mm
Measuring range of force: 5%~100% (maximum load)
Accuracy of force: ±1% (maximum load)
Data output: RS232
Power supply: 220V, 50/60Hz
Dimension: 300x235x600mm
Weight: 13.2kg
อุปกรณ์หลัก
Main unit : 1 pc
Power supply adapter: 1 pc
