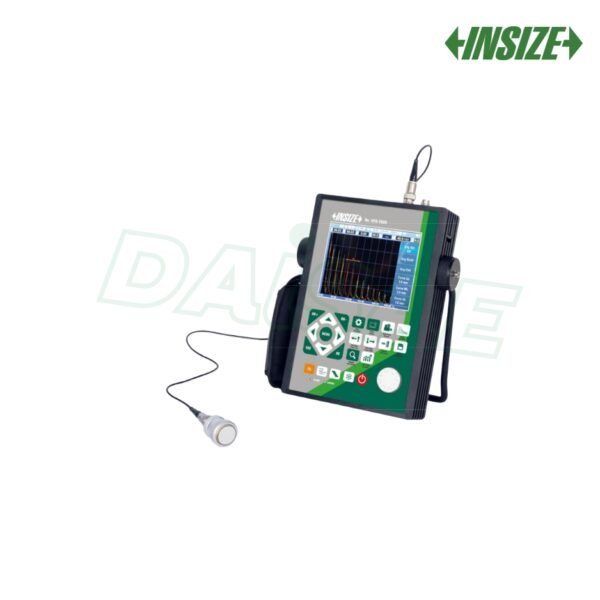

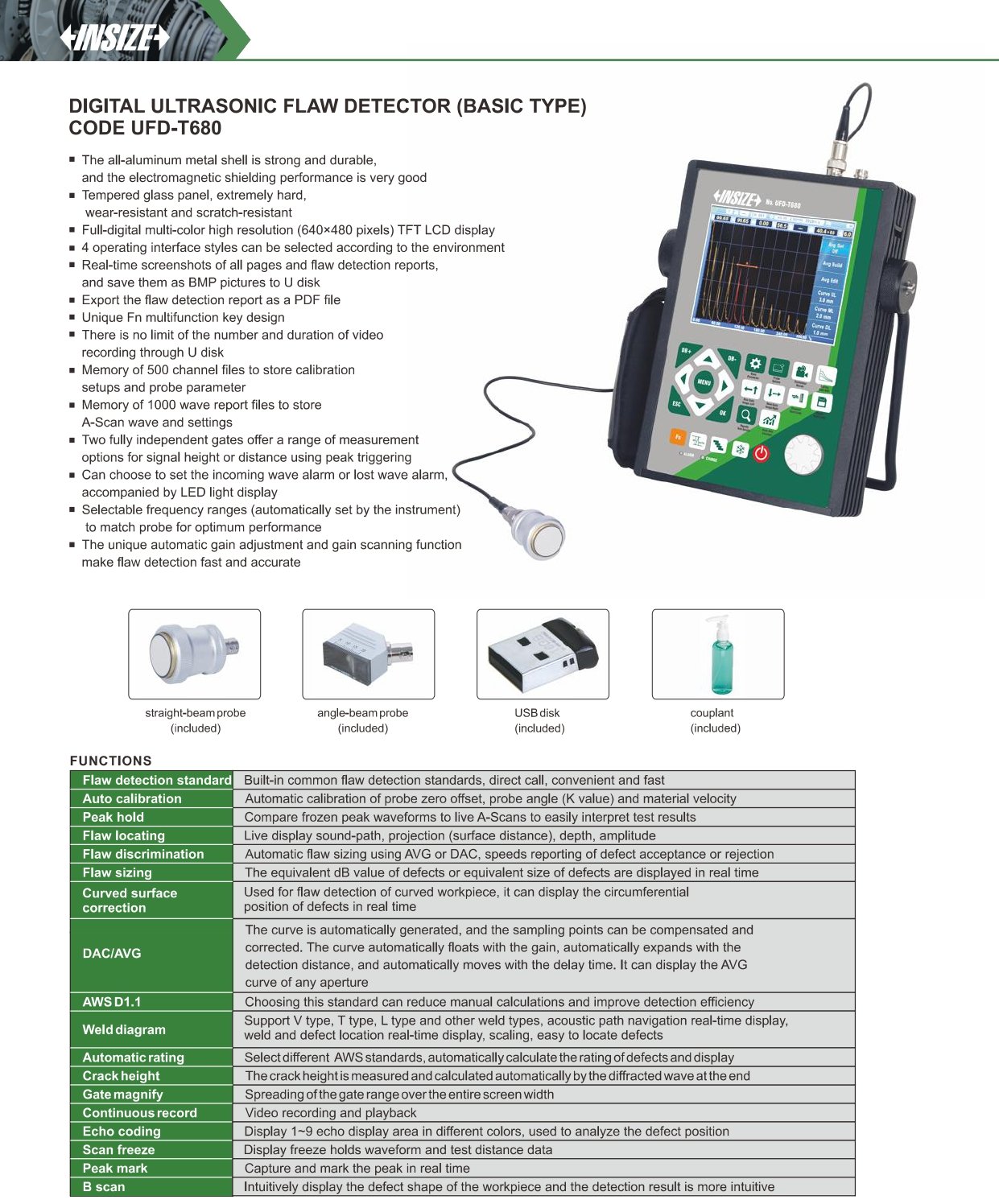

INSIZE UFD-T680 Digital Ultrasonic Flaw Detector (0-15000 mm)

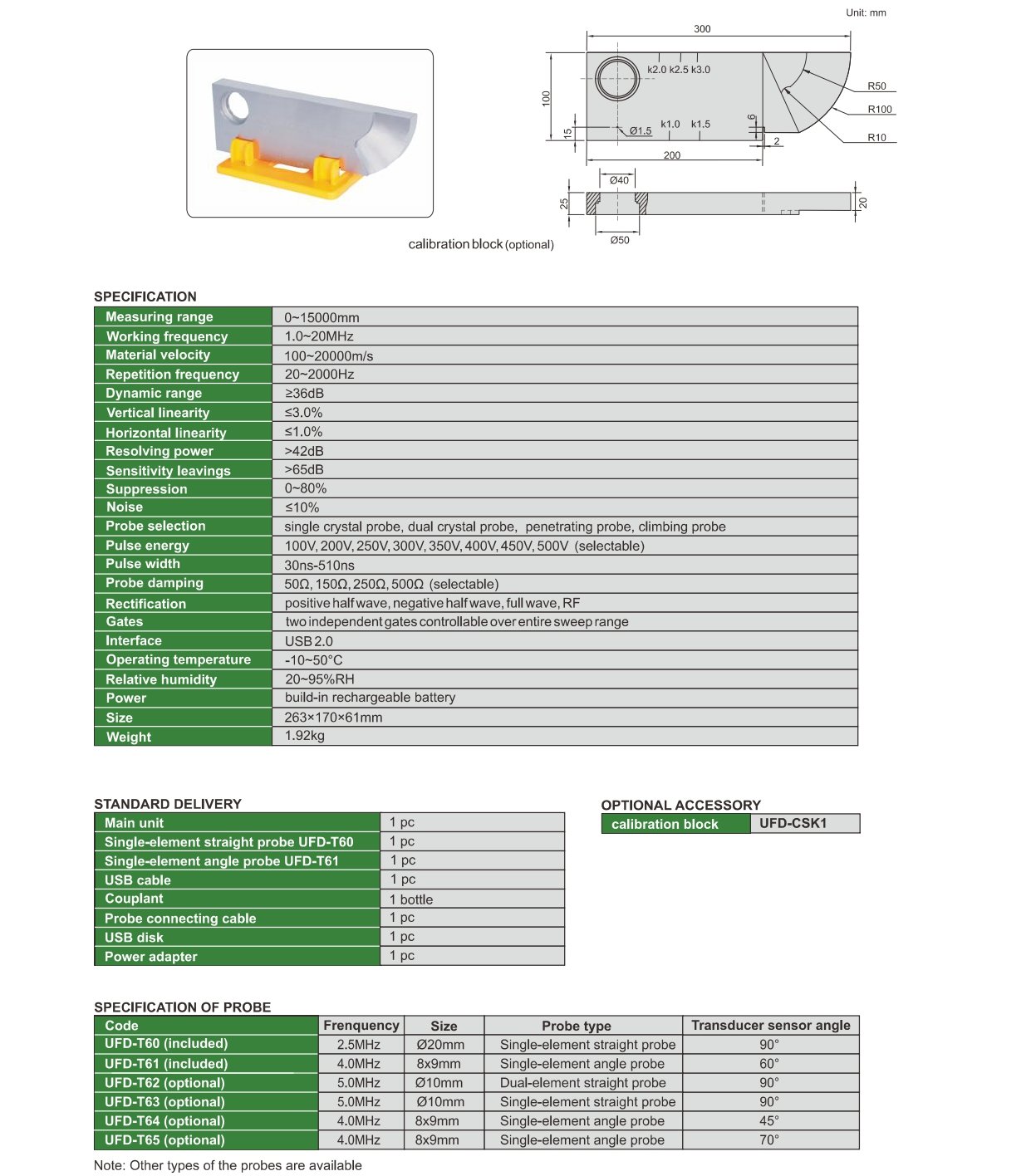

Specification

Measurement Range: 0-15000 mm

Working Frequency: 0.2-20 MHz

Material Velocity: 100-20000 m/s

Repetition Frequency: 20-2000 Hz

Dynamic Range: ≥36 dB

Vertical Linearity: ≤1.5%

Horizontal Linearity: ≤0.1%

Resolving power: >42 dB

Sensitivity leavings: >65 dB

Noise: ≤10%

Probe selection: Single crystal probe, Dual crystal probe, penetrating probe, climbing probe

Pulse energy: 100 V, 200 V, 250 V, 300 V, 350 V, 400 V, 450 V, 500 V (selectable)

Pulse Width: 30 ns ~ 510 ns

Probe Damping: 50 Ω, 150 Ω, 250 Ω, 500 Ω (selectable)

Rectification: Positive half-wave, Negative half-wave, Full-wave, RF

Gates: 2 independent gates controllable over entire sweep range

Interface: USB 2.0

Operating Temperature: -10 – 50°C

Relative Humidity: 20-95% RH

Power: build-in rechargeable battery

Dimensions: 263 x 170 x 61 mm

Weight: 1.92 kg

Included Accessories: Main unit, Single-element straight probe UFD-T60, Single-element angle probe UFD-T61 , USB cable, couplant, probe connection cable, USB disk, power adapter.
