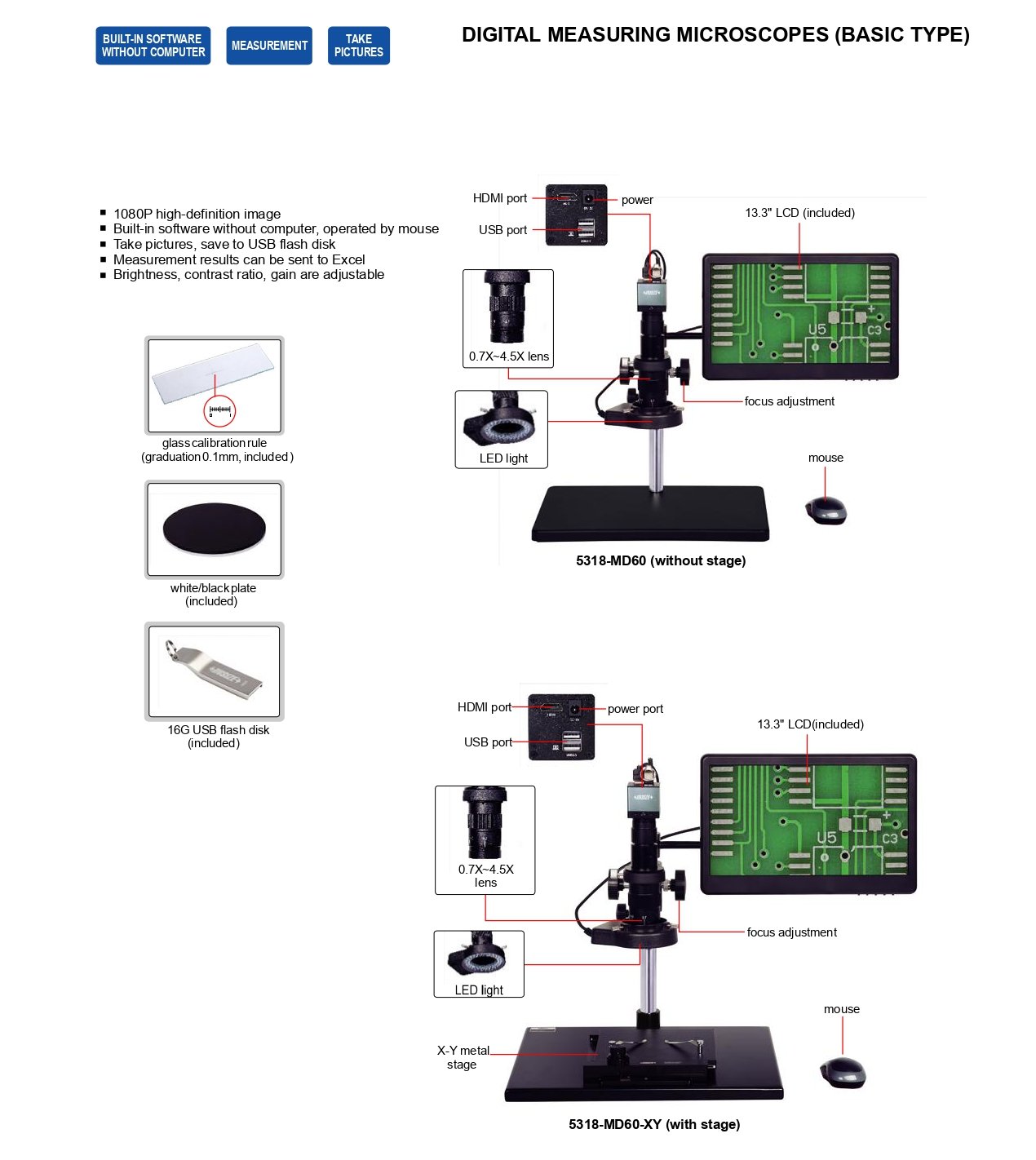

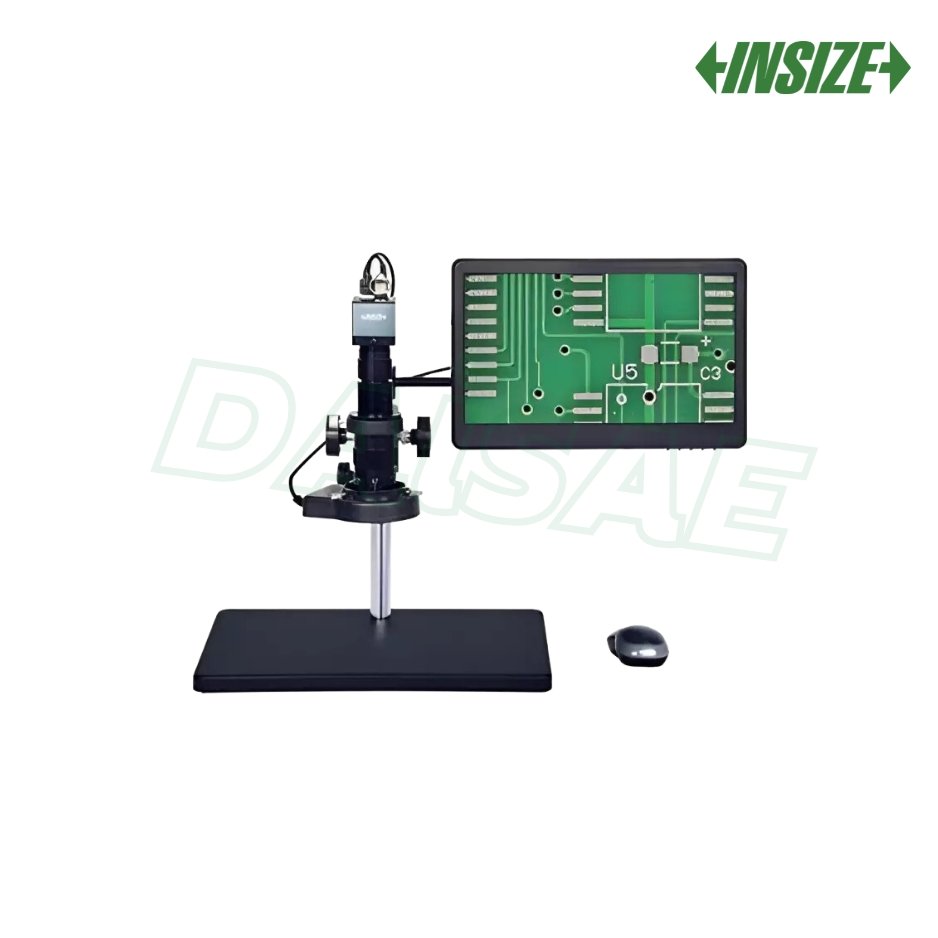

INSIZE 5318-MD60-XY Digital measuring microscopes (Basic Type) (with stage; 12.5X~80X)
- 1080P High-definition image
- Built-in software without computer, Operated by mouse
- Take pictures, Save to USB flash drive
- Measurement results can be sent to Excel
- Brightness, Contrast ratio, Gain are adjustable

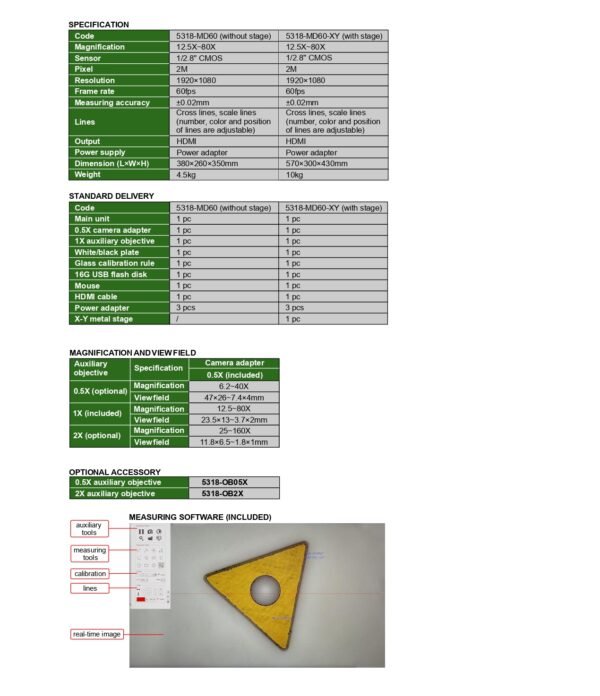

Specification
Magnification: 12.5X~80X
Sensor: 1/2.8″ CMOS
Pixel: 2M
Resolution: 1920×1080
Frame rate: 60fps
Measuring accuracy: ±0.02mm
Lines: Cross lines, scale lines (number, color and position of lines are adjustable)
Output: HDMI
Power supply: Power adapter
Dimension (L*W*H): 570x300x430mm
Weight: 10kg
อุปกรณ์
Main unit : 1 pc
0.5X camera adapter: 1 pc
1X auxiliary objective: 1 pc
White/Black plate: 1 pc
Glass calibration rule: 1 pc
16G USB flash drive: 1 pc
Mouse: 1 pc
HDMI cable: 1 pc
Power adapter: 3 pcs
X-Y metal stage: 1 pc
